Full Bore Electromagnetic Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 25,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Usage/ApplicationWaste water, Food and Beverages etc
Operating Temperature0 -150 Deg C (Depends on liner)
Power Supply24 V DC / 230 V AC
CommunicationGSM
Electrode MaterialHastelloy C, SS 316
Line Size 15-1000 mm
Output Current4-20mA, Relay, Pulse, RS 485, Data Logging
LiningPTFE, Rubber
Electrode MaterialHastelloy C, SS 316
Body MaterialMS or SS
FlangesANSI/ DIN/ BS/ SMS/ Tri-Clamp/ Sandwich
TransmitterLocal /Remote


Digital Water Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 15,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Usage/ApplicationResidential
DisplayDigital
Velocity Range0. 2 to 10 m/s
Flow Meter SizesDN 2 to DN 2000
Coil HousingNBR Hard Rubber/EPDM/PTFE/EBONITE
HousingCarbon Steel/Stainless Steel
Accuracy 0. 25% to 0. 50 %
Power Supply24 VDC or 230 VAC.Electromagnetic.

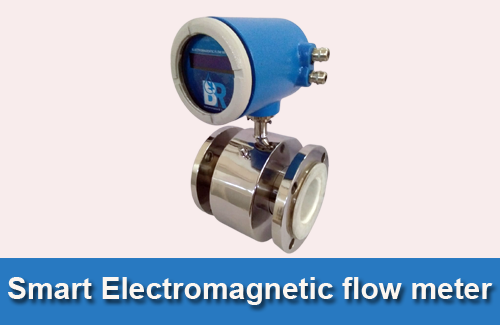

Smart Electromagnetic Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 15,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Usage/ApplicationWater
Frequency50 Hz
DisplayDigital
MaterialMild Steel
Flow range0 to 9999 m3 Per Hour
Velocity Range0. 2 to 10 m/s
Flow Meter SizesDN 2 to DN 2000
Coil HousingNBR Hard Rubber/EPDM/PTFE/EBONITE
HousingCarbon Steel/Stainless Steel
Protection DegreeIP67/IP68
Accuracy0. 25% to 0. 50 %
Power Supply24 VDC or 230 VAC.Electromagnetic.


Electromagnetic Flow Meter


Decking Sheets manufacturer

Approx. Price: Rs 14,500 / Piece


Minimum Order Quantity          1 Piece
BrandBR
DisplayDigital
Accuracy0.5%
IP RatingIP67
Frequency50 Hz
Velocity Range0. 2 to 10 m/s
Flow Meter SizesDN 2 to DN 2000

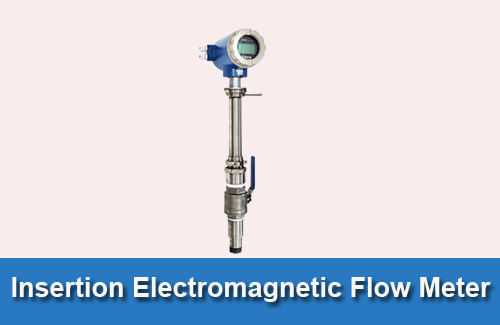

Insertion Electromagnetic Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 50,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Usage/ApplicationWater
DisplayDigital
Accuracy0. 5%
Power Supply220 V AC / 24 V DC.
Voltage 220 V
Frequency50 Hz

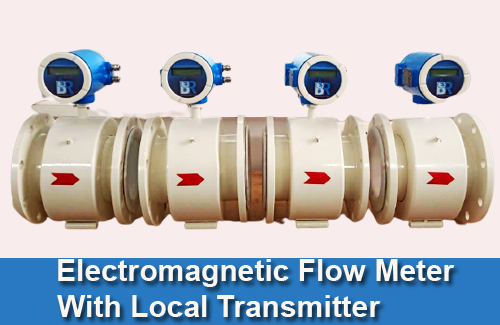

Electromagnetic Flow Meters Local Transmitter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 15,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Power Supply24 VDC / 230 VAC
Electrode MaterialHastelloy C,SS 316
Environment Temp.0 -150 Deg.0 (Depends on liner)
Accuracy0. 25% to 0. 50 %
Line Size15-1000 mm
Output Current 4-20 mA, Relay, Pulse, RS 485, Data logging
Flow Meter SizesDN 2 to DN 2000
Lining MaterialPTFE,Rubber,Other as Per Request
Body MaterialMS or SS
Flanges ANSI/DIN/BS/SMS/Tri-Clamp/Sandwich
TransmitterLocal (Integral)
Velocity Range0. 2 to 10 m/s
Flow Meter Sizes DN 2 to DN 2000
Coil Housing NBR Hard Rubber/EPDM/PTFE/EBONITE
Housing MaterialCarbon Steel/Stainless Steel
Protection DegreeIP67/IP68
Seriese-MAG 100


Magnetic Flow Meter


magnetic-Flow-Meter-manufacturerr

Approx. Price: Rs 15,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Material Mild Steel
Flow range0 to 9999 m3 Per Hour
Velocity Range0. 2 to 10 m/s
Flow Meter SizesDN 2 to DN 2000
Coil HousingNBR Hard Rubber/EPDM/PTFE/EBONITE
HousingCarbon Steel/Stainless Steel
Protection DegreeIP67/IP68
Accuracy 0. 25% to 0. 50 %
Power Supply24 VDC or 230 VAC.Electromagnetic.

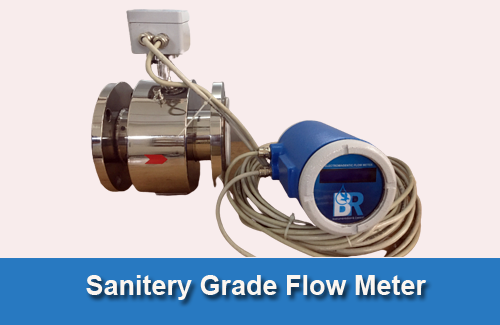

Sanitary Grade Electromagnetic Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 15,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Usage/ApplicationResidential
DisplayDigital
Velocity Range0. 2 to 10 m/s
Flow Meter SizesDN 2 to DN 2000
Coil HousingNBR Hard Rubber/EPDM/PTFE/EBONITE
HousingCarbon Steel/Stainless Steel
Accuracy 0. 25% to 0. 50 %
Power Supply24 VDC or 230 VAC.Electromagnetic.

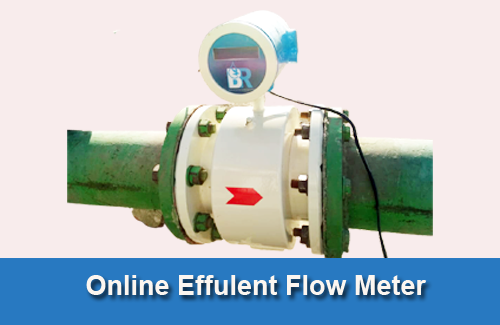

Online Effulent Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 25,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
DisplayLocal, Remote
Application MediaWater, Any Liquid
Automation GradeAutomatic
ConnectivityRS485
Meter TypeElectronics
Line Size15 to 1000 mm
Flow range(Min-Max)1 to 999
Operating Temperature (Celsius)120 Degree C
Accuracy (%)1
Diameter (Millimetre)15 to 1000

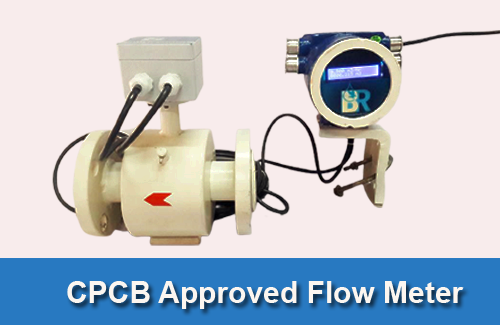

CPCB Approved Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 25,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
UsageResidential
DisplayDigital
Velocity Range0. 2 to 10 m/s
Flow Meter SizesDN 2 to DN 2000
Accuracy0. 25% to 0. 50 %
Frequency50 Hz
Voltage220 V

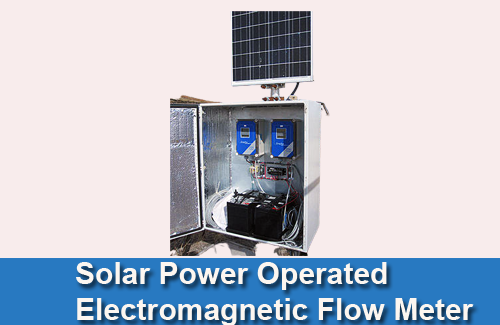

Solar Power Operated Electromagnetic Flow Meters


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 25,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
Line Size15-1000 mm
Lining MaterialPTFE, Rubber
Body MaterialMS / SS
Output4-20 mA, Relay, Pulse, RS 485, Data Logging
Flanges ANSI/DIN/BS/SMS/Tri-Clamp/Sandwich
TransmitterLocal /Remote
Working Temperature0 -150 Deg. C (Depends on liner)
CommunicationGSM
Power Supply24 V DC / 230 V AC
Electrode MaterialHastelloy C , SS 316

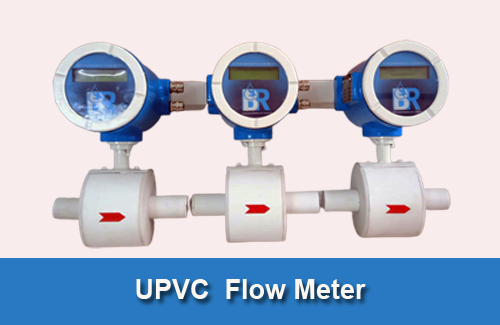

UPVC Flow Meter


Electromagnetic Flow Meter manufacturer

Approx. Price: Rs 13,000 / Piece


Minimum Order Quantity          1 Piece
BrandBR
DisplayRemote, Local
Application MediaWater, Any Liquid
Automation GradeAutomatic
ConditionNew
ConnectivityRS485
Meter TypeElectronics
Line Size15 to 200 mm
Modele-MAG
ColourWhite
Flow range(Min-Max)0 to 999
Operating Pressure10
Operating Temperature (Celsius)40
Accuracy (%)1
Flow Media TypeWater


Best Digital Water Flow Meters


Established in the year 2008, we, BR Instrumentation & Controls, are a reputed Digital Water Flow Meters manufacturer, exporter and supplier company in Mumbai, pune, Ahmadabad, Gujarat, Chennai, Hyderabad, Bangalore, Maharashtra that are used in numerous industries Digital Water Flow Meters manufactured by us are highly valued by the clients, and well acknowledged in the domestic market. Our proficiency also lies in providing complete process control application for the client's assistance.


Why BR Instrumentation & Controls?


We have a sound infrastructure, which includes a Digital water Flow Meters manufacturing and testing unit, a research & development wing and a warehousing & packaging facility.All Digital water Flow Meters units are operational with the latest machines & technologies and are manned by skilled professionals. The team possesses significant industry experience and conducts their operations very meticulously and make sure that the range is free from defect. To ensure that the Digital Water Flow Meters are faultless, we conduct abundant quality tests on the range. Through the products, we are productively serving industries like cement, sugar, fertilizer, pharmaceuticals, chemicals and pollution control industries.Our product Digital Water Flow Meters are used in various industries for signal, monitoring & run parameters such as temperature, time, counting, humidity, pH, conductivity, etc. There are numerous industries where our product Digital Water Flow Meters finds wide applications.


About Digital water Flow Meters:


BR Instrumentation & Controls manufactured cylindrical Digital Water Flow Meters is a better choice for flow measurement of very high viscosity fluids with the help of Positive Displacement Technology.With the most modern technology of K-factor this digital water flow meters are very good choice for fluids with changing flow rates. Our Digital Water Flow Meters provides great precision and repeatability over the full range of measurement. These Digital water flow Meters are measured as the best choice for measurement in water flow measurement as well as batching systems for various fluids.


Salient Features of Digital Water Flow Meters:


  • High in accuracy
  • Max handling Pressure: up to 25 bar
  • Totally Independent of viscosity, the perfect choice for fluids with 1 to 106 mm2/s viscosity.
  • Available with Low-pressure drop compared to other positive displacement meters
  • Gives High resolution of display
  • Provides Pulsation-free measurement, Insensitive to pulsating flows
  • Provides complete Resistant to corrosion by advanced materials and bearings

Operating Specifications:


Specification Meters / Controllers Operating Description
Accuracy ± 2 % Full Scale
Repeatability ± 2 % Full Scale
Operating Range 1% to 100% Full Scale Measure or Control Typical
Response Time 20 100 Milliseconds (Adjustable)
Operating Temperature +10 to + 50 º Celsius
Supply Current 0.035 0.250 AMP
Supply Voltage 7—30² 12—18³ VDC
Temperature or Flow RS-232 Serial
Optional Input / Output Signal Secondary 0-5 Vdc; 0-10Vdc;4-20mA2 Analog Pressure, Temperature or Flow
Input /Output Signal type Digital Pressure, Temperature or Flow RS-232 Serial
Wetted Materials Controllers Add: 400 Series Stainless Steel, Brass 303 & 302 Stainless Steel, Polyethermide

Applications of Digital Water Flow Meter


Digital Water Flow meters are devices used to measure the flow rate of Gas, Liquid or steam flowing through a pipe.


In mass flow measurement, such as

  • Natural gas
  • Compressed air
  • Boiler efficiency
  • Burner control
  • Gas mixing
  • Blending
  • Steam flow
  • Water flow
